music21.graph.plot

Object definitions for plotting Stream objects.

The PlotStream object subclasses combine a Graph object with the PlotStreamMixin to give reusable approaches to graphing data and structures in Stream objects.

HistogramPitchSpace

class music21.graph.plot.HistogramPitchSpace(streamObj=None, **keywords)

A histogram of pitch space.

>>> s = corpus.parse('bach/bwv57.8')
>>> p = graph.plot.HistogramPitchSpace(s)
>>> p.id
'histogram-pitchSpace-count'
>>> p.run()  # with defaults and proper configuration, will open graph

HistogramPitchSpace bases

• Histogram

• GraphHistogram

• Graph

• PlotStreamMixin

• ProtoM21Object

HistogramPitchSpace read-only properties

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

HistogramPitchSpace read/write properties

Read/write properties inherited from Graph:

doneAction

HistogramPitchSpace methods

Methods inherited from Histogram:

remapXTicksData()

run()

Methods inherited from GraphHistogram:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() extractData()

fillValueLists() postProcessData() postProcessElement()

processOneElement() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

HistogramPitchSpace instance variables

Instance variables inherited from GraphHistogram:

binWidth

HistogramPitchClass

class music21.graph.plot.HistogramPitchClass(streamObj=None, **keywords)

A histogram of pitch class

>>> s = corpus.parse('bach/bwv57.8')
>>> p = graph.plot.HistogramPitchClass(s)
>>> p.id
'histogram-pitchClass-count'
>>> p.run()  # with defaults and proper configuration, will open graph

HistogramPitchClass bases

• Histogram

• GraphHistogram

• Graph

• PlotStreamMixin

• ProtoM21Object

HistogramPitchClass read-only properties

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

HistogramPitchClass read/write properties

Read/write properties inherited from Graph:

doneAction

HistogramPitchClass methods

Methods inherited from Histogram:

remapXTicksData()

run()

Methods inherited from GraphHistogram:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() extractData()

fillValueLists() postProcessData() postProcessElement()

processOneElement() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

HistogramPitchClass instance variables

Instance variables inherited from GraphHistogram:

binWidth

HistogramQuarterLength

class music21.graph.plot.HistogramQuarterLength(streamObj=None, **keywords)

A histogram of pitch class.

>>> s = corpus.parse('bach/bwv57.8')
>>> p = graph.plot.HistogramQuarterLength(s)
>>> p.id
'histogram-quarterLength-count'
>>> p.run()  # with defaults and proper configuration, will open graph

HistogramQuarterLength bases

• Histogram

• GraphHistogram

• Graph

• PlotStreamMixin

• ProtoM21Object

HistogramQuarterLength read-only properties

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

HistogramQuarterLength read/write properties

Read/write properties inherited from Graph:

doneAction

HistogramQuarterLength methods

Methods inherited from Histogram:

remapXTicksData()

run()

Methods inherited from GraphHistogram:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() extractData()

fillValueLists() postProcessData() postProcessElement()

processOneElement() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

HistogramQuarterLength instance variables

Instance variables inherited from GraphHistogram:

binWidth

WindowedKey

class music21.graph.plot.WindowedKey(streamObj=None, **keywords)

Stream plotting of windowed version of Krumhansl-Schmuckler analysis routine. See KrumhanslSchmuckler for more details.

>>> s = corpus.parse('bach/bwv66.6')
>>> p = graph.plot.WindowedKey(s.parts[0])
>>> p.run()  # with defaults and proper configuration, will open graph

Set the processor class to one of the following for different uses:

>>> p = graph.plot.WindowedKey(s.parts.first())
>>> p.processorClass = analysis.discrete.AardenEssen
>>> p.processorClass = analysis.discrete.SimpleWeights
>>> p.processorClass = analysis.discrete.BellmanBudge
>>> p.processorClass = analysis.discrete.TemperleyKostkaPayne
>>> p.run()

WindowedKey bases

• WindowedAnalysis

• GraphColorGrid

• Graph

• PlotStreamMixin

• ProtoM21Object

WindowedKey read-only properties

Read-only properties inherited from WindowedAnalysis:

processor

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

WindowedKey read/write properties

Read/write properties inherited from Graph:

doneAction

WindowedKey methods

Methods inherited from WindowedAnalysis:

extractData()

run()

write()

Methods inherited from GraphColorGrid:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction()

hideAxisSpines() nextColor() process() setAxisLabel()

setAxisRange() setIntegerTicksFromData() setTicks() show()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() fillValueLists()

postProcessData() postProcessElement()

processOneElement() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

WindowedKey instance variables

Instance variables inherited from GraphColorGrid:

hideLeftBottomSpines

WindowedAmbitus

class music21.graph.plot.WindowedAmbitus(streamObj=None, **keywords)

Stream plotting of basic pitch span.

>>> s = corpus.parse('bach/bwv66.6')
>>> p = graph.plot.WindowedAmbitus(s.parts.first())
>>> p.run()  # with defaults and proper configuration, will open graph

WindowedAmbitus bases

• WindowedAnalysis

• GraphColorGrid

• Graph

• PlotStreamMixin

• ProtoM21Object

WindowedAmbitus read-only properties

Read-only properties inherited from WindowedAnalysis:

processor

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

WindowedAmbitus read/write properties

Read/write properties inherited from Graph:

doneAction

WindowedAmbitus methods

Methods inherited from WindowedAnalysis:

extractData()

run()

write()

Methods inherited from GraphColorGrid:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction()

hideAxisSpines() nextColor() process() setAxisLabel()

setAxisRange() setIntegerTicksFromData() setTicks() show()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() fillValueLists()

postProcessData() postProcessElement()

processOneElement() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

WindowedAmbitus instance variables

Instance variables inherited from GraphColorGrid:

hideLeftBottomSpines

ScatterPitchSpaceQuarterLength

class music21.graph.plot.ScatterPitchSpaceQuarterLength(streamObj=None, **keywords)

A scatter plot of pitch space and quarter length

>>> s = corpus.parse('bach/bwv324.xml')
>>> p = graph.plot.ScatterPitchSpaceQuarterLength(s)
>>> p.id
'scatter-quarterLength-pitchSpace'
>>> p.run()

ScatterPitchSpaceQuarterLength bases

• Scatter

• GraphScatter

• Graph

• PlotStreamMixin

• ProtoM21Object

ScatterPitchSpaceQuarterLength read-only properties

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

ScatterPitchSpaceQuarterLength read/write properties

Read/write properties inherited from Graph:

doneAction

ScatterPitchSpaceQuarterLength methods

Methods inherited from GraphScatter:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() extractData()

fillValueLists() postProcessData() postProcessElement()

processOneElement() run() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

ScatterPitchClassQuarterLength

class music21.graph.plot.ScatterPitchClassQuarterLength(streamObj=None, **keywords)

A scatter plot of pitch class and quarter length

>>> s = corpus.parse('bach/bwv57.8')
>>> p = graph.plot.ScatterPitchClassQuarterLength(s)
>>> p.id
'scatter-quarterLength-pitchClass'
>>> p.run()

ScatterPitchClassQuarterLength bases

• ScatterPitchSpaceQuarterLength

• Scatter

• GraphScatter

• Graph

• PlotStreamMixin

• ProtoM21Object

ScatterPitchClassQuarterLength read-only properties

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

ScatterPitchClassQuarterLength read/write properties

Read/write properties inherited from Graph:

doneAction

ScatterPitchClassQuarterLength methods

Methods inherited from GraphScatter:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() extractData()

fillValueLists() postProcessData() postProcessElement()

processOneElement() run() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

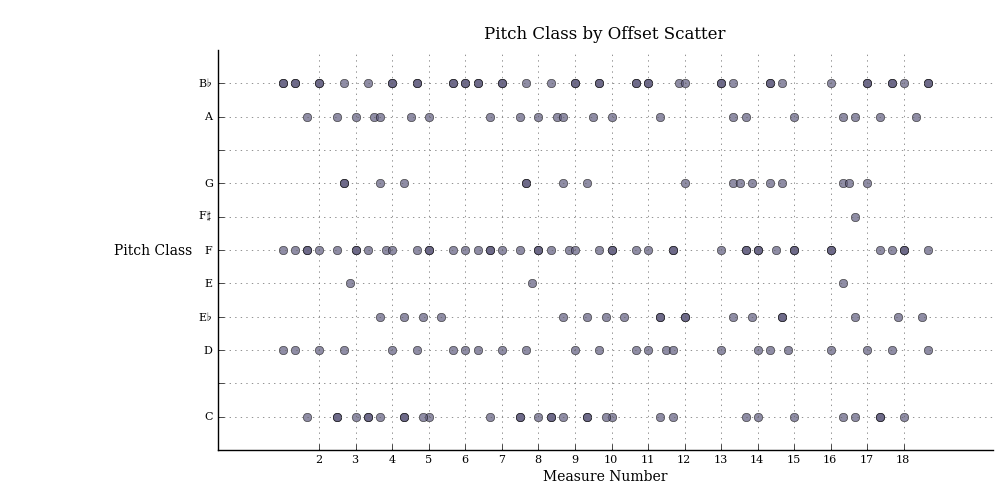

ScatterPitchClassOffset

class music21.graph.plot.ScatterPitchClassOffset(streamObj=None, **keywords)

A scatter plot of pitch class and offset

>>> s = corpus.parse('bach/bwv57.8')
>>> p = graph.plot.ScatterPitchClassOffset(s)
>>> p.id
'scatter-offset-pitchClass'
>>> p.run()

ScatterPitchClassOffset bases

• Scatter

• GraphScatter

• Graph

• PlotStreamMixin

• ProtoM21Object

ScatterPitchClassOffset read-only properties

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

ScatterPitchClassOffset read/write properties

Read/write properties inherited from Graph:

doneAction

ScatterPitchClassOffset methods

Methods inherited from GraphScatter:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() extractData()

fillValueLists() postProcessData() postProcessElement()

processOneElement() run() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

ScatterPitchSpaceDynamicSymbol

class music21.graph.plot.ScatterPitchSpaceDynamicSymbol(streamObj=None, **keywords)

A graph of dynamics used by pitch space.

>>> s = corpus.parse('schumann_robert/opus41no1/movement2.xml')
>>> p = graph.plot.ScatterPitchSpaceDynamicSymbol(s)
>>> p.run()

ScatterPitchSpaceDynamicSymbol bases

• Scatter

• GraphScatter

• Graph

• PlotStreamMixin

• ProtoM21Object

ScatterPitchSpaceDynamicSymbol read-only properties

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

ScatterPitchSpaceDynamicSymbol read/write properties

Read/write properties inherited from Graph:

doneAction

ScatterPitchSpaceDynamicSymbol methods

ScatterPitchSpaceDynamicSymbol.extractData()

Methods inherited from GraphScatter:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() fillValueLists()

postProcessData() postProcessElement() processOneElement()

run() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

HorizontalBarPitchSpaceOffset

class music21.graph.plot.HorizontalBarPitchSpaceOffset(streamObj=None, *, colorByPart=False, **keywords)

A graph of events, sorted by pitch space, over time, generally called a “piano roll”.

>>> s = corpus.parse('bach/bwv57.8')
>>> p = graph.plot.HorizontalBarPitchSpaceOffset(s)
>>> p.run()  # with defaults and proper configuration, will open graph

HorizontalBarPitchSpaceOffset bases

• HorizontalBar

• GraphHorizontalBar

• Graph

• PlotStreamMixin

• ProtoM21Object

HorizontalBarPitchSpaceOffset read-only properties

Read-only properties inherited from GraphHorizontalBar:

barHeight

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

HorizontalBarPitchSpaceOffset read/write properties

Read/write properties inherited from Graph:

doneAction

HorizontalBarPitchSpaceOffset methods

Methods inherited from HorizontalBar:

assignColorsToParts() postProcessData()

postProcessElement()

run()

Methods inherited from GraphHorizontalBar:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis()

extractData() fillValueLists()

processOneElement() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

HorizontalBarPitchSpaceOffset instance variables

Instance variables inherited from GraphHorizontalBar:

barSpace

margin

HorizontalBarPitchClassOffset

class music21.graph.plot.HorizontalBarPitchClassOffset(streamObj=None, *, colorByPart=False, **keywords)

A graph of events, sorted by pitch class, over time.

>>> s = corpus.parse('bach/bwv57.8')
>>> p = graph.plot.HorizontalBarPitchClassOffset(s)
>>> p.run()  # with defaults and proper configuration, will open graph

HorizontalBarPitchClassOffset bases

• HorizontalBar

• GraphHorizontalBar

• Graph

• PlotStreamMixin

• ProtoM21Object

HorizontalBarPitchClassOffset read-only properties

Read-only properties inherited from GraphHorizontalBar:

barHeight

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

HorizontalBarPitchClassOffset read/write properties

Read/write properties inherited from Graph:

doneAction

HorizontalBarPitchClassOffset methods

Methods inherited from HorizontalBar:

assignColorsToParts() postProcessData()

postProcessElement()

run()

Methods inherited from GraphHorizontalBar:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis()

extractData() fillValueLists()

processOneElement() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

HorizontalBarPitchClassOffset instance variables

Instance variables inherited from GraphHorizontalBar:

barSpace

margin

Dolan

class music21.graph.plot.Dolan(streamObj=None, **keywords)

A graph of the activity of a parameter of a part (or a group of parts) over time. The default parameter graphed is Dynamics. Dynamics are assumed to extend activity to the next change in dynamics.

Numerous parameters can be configured based on functionality encoded in the PartReduction object.

If the fillByMeasure parameter is True, and if measures are available, each part will segment by Measure divisions, and look for the target activity only once per Measure. If more than one target is found in the Measure, values will be averaged. If fillByMeasure is False, the part will be segmented by each Note.

The segmentByTarget parameter is True, segments, which may be Notes or Measures, will be divided if necessary to show changes that occur over the duration of the segment by a target object.

If the normalizeByPart parameter is True, each part will be normalized within the range only of that part. If False, all parts will be normalized by the max of all parts. The default is True.

>>> s = corpus.parse('bwv66.6')
>>> dyn = ['p', 'mf', 'f', 'ff', 'mp', 'fff', 'ppp']
>>> i = 0
>>> for p in s.parts:
...     for m in p.getElementsByClass(stream.Measure):
...         m.insert(0, dynamics.Dynamic(dyn[i % len(dyn)]))
...         i += 1
...
>>> s.plot('dolan', fillByMeasure=True, segmentByTarget=True)

Dolan bases

• HorizontalBarWeighted

• GraphHorizontalBarWeighted

• Graph

• PlotStreamMixin

• ProtoM21Object

Dolan read-only properties

Read-only properties inherited from GraphHorizontalBarWeighted:

barHeight

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

Dolan read/write properties

Read/write properties inherited from Graph:

doneAction

Dolan methods

Methods inherited from HorizontalBarWeighted:

extractData()

Methods inherited from GraphHorizontalBarWeighted:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() fillValueLists()

postProcessData() postProcessElement() processOneElement()

run() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

Dolan instance variables

Instance variables inherited from GraphHorizontalBarWeighted:

barSpace

margin

ScatterWeightedPitchSpaceQuarterLength

class music21.graph.plot.ScatterWeightedPitchSpaceQuarterLength(streamObj=None, **keywords)

A graph of event, sorted by pitch, over time.

>>> s = corpus.parse('bach/bwv57.8')
>>> p = graph.plot.ScatterWeightedPitchSpaceQuarterLength(s)
>>> p.run()  # with defaults and proper configuration, will open graph

ScatterWeightedPitchSpaceQuarterLength bases

• ScatterWeighted

• GraphScatterWeighted

• Graph

• PlotStreamMixin

• ProtoM21Object

ScatterWeightedPitchSpaceQuarterLength read-only properties

Read-only properties inherited from GraphScatterWeighted:

rangeDiameter

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

ScatterWeightedPitchSpaceQuarterLength read/write properties

Read/write properties inherited from Graph:

doneAction

ScatterWeightedPitchSpaceQuarterLength methods

Methods inherited from GraphScatterWeighted:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() extractData()

fillValueLists() postProcessData() postProcessElement()

processOneElement() run() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

ScatterWeightedPitchSpaceQuarterLength instance variables

Instance variables inherited from GraphScatterWeighted:

maxDiameter

minDiameter

ScatterWeightedPitchClassQuarterLength

class music21.graph.plot.ScatterWeightedPitchClassQuarterLength(streamObj=None, **keywords)

A graph of event, sorted by pitch class, over time.

>>> s = corpus.parse('bach/bwv57.8')
>>> p = graph.plot.ScatterWeightedPitchClassQuarterLength(s)
>>> p.run()  # with defaults and proper configuration, will open graph

ScatterWeightedPitchClassQuarterLength bases

• ScatterWeighted

• GraphScatterWeighted

• Graph

• PlotStreamMixin

• ProtoM21Object

ScatterWeightedPitchClassQuarterLength read-only properties

Read-only properties inherited from GraphScatterWeighted:

rangeDiameter

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

ScatterWeightedPitchClassQuarterLength read/write properties

Read/write properties inherited from Graph:

doneAction

ScatterWeightedPitchClassQuarterLength methods

Methods inherited from GraphScatterWeighted:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() extractData()

fillValueLists() postProcessData() postProcessElement()

processOneElement() run() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

ScatterWeightedPitchClassQuarterLength instance variables

Instance variables inherited from GraphScatterWeighted:

maxDiameter

minDiameter

ScatterWeightedPitchSpaceDynamicSymbol

class music21.graph.plot.ScatterWeightedPitchSpaceDynamicSymbol(streamObj=None, **keywords)

A graph of dynamics used by pitch space.

>>> s = corpus.parse('schumann_robert/opus41no1/movement2.xml')
>>> p = graph.plot.ScatterWeightedPitchSpaceDynamicSymbol(s)
>>> p.run()  # with defaults and proper configuration, will open graph

ScatterWeightedPitchSpaceDynamicSymbol bases

• ScatterWeighted

• GraphScatterWeighted

• Graph

• PlotStreamMixin

• ProtoM21Object

ScatterWeightedPitchSpaceDynamicSymbol read-only properties

Read-only properties inherited from GraphScatterWeighted:

rangeDiameter

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

ScatterWeightedPitchSpaceDynamicSymbol read/write properties

Read/write properties inherited from Graph:

doneAction

ScatterWeightedPitchSpaceDynamicSymbol methods

ScatterWeightedPitchSpaceDynamicSymbol.extractData()

Methods inherited from GraphScatterWeighted:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() fillValueLists()

postProcessData() postProcessElement() processOneElement()

run() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

ScatterWeightedPitchSpaceDynamicSymbol instance variables

Instance variables inherited from GraphScatterWeighted:

maxDiameter

minDiameter

Plot3DBarsPitchSpaceQuarterLength

class music21.graph.plot.Plot3DBarsPitchSpaceQuarterLength(streamObj=None, **keywords)

A scatter plot of pitch and quarter length

>>> from music21.musicxml import testFiles
>>> s = converter.parse(testFiles.mozartTrioK581Excerpt)
>>> p = graph.plot.Plot3DBarsPitchSpaceQuarterLength(s)
>>> p.id
'3DBars-quarterLength-pitchSpace-count'
>>> p.run()  # with defaults and proper configuration, will open graph

Plot3DBarsPitchSpaceQuarterLength bases

• Plot3DBars

• Graph3DBars

• Graph

• PlotStreamMixin

• ProtoM21Object

Plot3DBarsPitchSpaceQuarterLength read-only properties

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

Plot3DBarsPitchSpaceQuarterLength read/write properties

Read/write properties inherited from Graph:

doneAction

Plot3DBarsPitchSpaceQuarterLength methods

Methods inherited from Graph3DBars:

process()

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction()

hideAxisSpines() nextColor() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() extractData()

fillValueLists() postProcessData() postProcessElement()

processOneElement() run() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

Features

class music21.graph.plot.Features(streamList, featureExtractors, labelList=None, **keywords)

Plots the output of a set of feature extractors.

FeatureExtractors can be ids or classes.

Features bases

• MultiStream

• GraphGroupedVerticalBar

• Graph

• PlotStreamMixin

• ProtoM21Object

Features read-only properties

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

Features read/write properties

Read/write properties inherited from Graph:

doneAction

Features methods

Features.extractData()

Features.run(*, callProcess: bool = True, **keywords)

main routine to extract data, set axis labels, run process() on the underlying Graph object, and if self.doneAction is not None, either write or show the graph.

Methods inherited from MultiStream:

parseStreams()

Methods inherited from GraphGroupedVerticalBar:

labelBars()

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() fillValueLists()

postProcessData() postProcessElement()

processOneElement() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

Histogram

class music21.graph.plot.Histogram(streamObj=None, **keywords)

Base class for histograms that plot one axis against its count

Histogram bases

• GraphHistogram

• Graph

• PlotStreamMixin

• ProtoM21Object

Histogram read-only properties

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

Histogram read/write properties

Read/write properties inherited from Graph:

doneAction

Histogram methods

Histogram.remapXTicksData()

Changes the ticks and data so that they both run 1, 2, 3, 4, etc.

Histogram.run(*, callProcess: bool = True, **keywords)

Override run method to remap X data into individual bins.

Methods inherited from GraphHistogram:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() extractData()

fillValueLists() postProcessData() postProcessElement()

processOneElement() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

Histogram instance variables

Instance variables inherited from GraphHistogram:

binWidth

HorizontalBar

class music21.graph.plot.HorizontalBar(streamObj: Stream | None = None, *, colorByPart=False, **keywords)

A graph of events, sorted by pitch, over time.

If colorByPart is True, then each part will get its own color from self.colors (unless there are more parts than colors).

HorizontalBar bases

• GraphHorizontalBar

• Graph

• PlotStreamMixin

• ProtoM21Object

HorizontalBar read-only properties

Read-only properties inherited from GraphHorizontalBar:

barHeight

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

HorizontalBar read/write properties

Read/write properties inherited from Graph:

doneAction

HorizontalBar methods

HorizontalBar.assignColorsToParts() → dict[music21.stream.base.Part, str]

Give a different color for each part, if self.colorByPart is True.

Returns the assignment for any further manipulation.

Currently, two piano hands (PartStaff objects) get different colors.

>>> bach = corpus.parse('bwv66.6')
>>> plot = graph.plot.HorizontalBar(bach, colorByPart=True)
>>> plot.assignColorsToParts()
{<music21.stream.Part Soprano>: '#605c7f',
 <music21.stream.Part Alto>: '#5c7f60',
 <music21.stream.Part Tenor>: '#988969',
 <music21.stream.Part Bass>: '#628297'}

HorizontalBar.postProcessData()

Call any post data processing routines here and on any axes.

HorizontalBar.postProcessElement(el: Music21Object, formatDict: dict[Any, Any], *values: list[numbers.Real])

Assign colors to each element if colorByPart is True.

HorizontalBar.run(*, callProcess: bool = True, **keywords)

Optionally assign colors to Part objects and then do the normal run.

Methods inherited from GraphHorizontalBar:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis()

extractData() fillValueLists()

processOneElement() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

HorizontalBar instance variables

Instance variables inherited from GraphHorizontalBar:

barSpace

margin

HorizontalBarWeighted

class music21.graph.plot.HorizontalBarWeighted(streamObj=None, **keywords)

A base class for plots of Scores with weighted (by height) horizontal bars. Many weighted segments represent a dynamic parameter of a Part.

HorizontalBarWeighted bases

• GraphHorizontalBarWeighted

• Graph

• PlotStreamMixin

• ProtoM21Object

HorizontalBarWeighted read-only properties

Read-only properties inherited from GraphHorizontalBarWeighted:

barHeight

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

HorizontalBarWeighted read/write properties

Read/write properties inherited from Graph:

doneAction

HorizontalBarWeighted methods

HorizontalBarWeighted.extractData()

Extract the data from the Stream.

Methods inherited from GraphHorizontalBarWeighted:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() fillValueLists()

postProcessData() postProcessElement() processOneElement()

run() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

HorizontalBarWeighted instance variables

Instance variables inherited from GraphHorizontalBarWeighted:

barSpace

margin

MultiStream

class music21.graph.plot.MultiStream(streamList, labelList=None, **keywords)

Approaches to plotting and graphing multiple Streams. A base class from which Stream plotting Classes inherit.

Not yet integrated into the 2017 system, unfortunately.

Provide a list of Streams as an argument. Optionally provide an additional list of labels for each list.

MultiStream bases

• GraphGroupedVerticalBar

• Graph

• PlotStreamMixin

• ProtoM21Object

MultiStream read-only properties

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

MultiStream read/write properties

Read/write properties inherited from Graph:

doneAction

MultiStream methods

MultiStream.parseStreams(streamList)

Methods inherited from GraphGroupedVerticalBar:

labelBars()

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() extractData()

fillValueLists() postProcessData() postProcessElement()

processOneElement() run() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

Plot3DBars

class music21.graph.plot.Plot3DBars(streamObj=None, **keywords)

Base class for Stream plotting classes.

Plot3DBars bases

• Graph3DBars

• Graph

• PlotStreamMixin

• ProtoM21Object

Plot3DBars read-only properties

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

Plot3DBars read/write properties

Read/write properties inherited from Graph:

doneAction

Plot3DBars methods

Methods inherited from Graph3DBars:

process()

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction()

hideAxisSpines() nextColor() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() extractData()

fillValueLists() postProcessData() postProcessElement()

processOneElement() run() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

PlotStream

class music21.graph.plot.PlotStream(streamObj=None, **keywords)

A generic stream plotter.

PlotStream bases

• Graph

• PlotStreamMixin

• ProtoM21Object

PlotStream read-only properties

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

PlotStream read/write properties

Read/write properties inherited from Graph:

doneAction

PlotStream methods

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() renderSubplot() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() extractData()

fillValueLists() postProcessData() postProcessElement()

processOneElement() run() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

PlotStreamMixin

class music21.graph.plot.PlotStreamMixin(streamObj=None, recurse=True, **keywords)

This Mixin adds Stream extracting and Axis holding features to any class derived from Graph.

PlotStreamMixin bases

• ProtoM21Object

PlotStreamMixin read-only properties

PlotStreamMixin.allAxes

return a list of axisX, axisY, axisZ if any are defined in the class.

Some might be None.

>>> s = stream.Stream()
>>> p = graph.plot.ScatterPitchClassOffset(s)
>>> p.allAxes
[<music21.graph.axis.OffsetAxis: x axis for ScatterPitchClassOffset>,
 <music21.graph.axis.PitchClassAxis: y axis for ScatterPitchClassOffset>]

PlotStreamMixin.id

Each PlotStream has a unique id that consists of its class name and the class names of the axes:

>>> s = stream.Stream()
>>> pScatter = graph.plot.ScatterPitchClassQuarterLength(s)
>>> pScatter.id
'scatter-quarterLength-pitchClass'

Read-only properties inherited from ProtoM21Object:

classSet

classes

PlotStreamMixin methods

PlotStreamMixin.extractChordDataMultiAxis(c, formatDict)

Returns a list of lists of values for each axis.

static PlotStreamMixin.extractChordDataOneAxis(ax, c, formatDict)

Look for Note-like attributes in a Chord. This is done by first looking at the Chord, and then, if attributes are not found, looking at each pitch.

Returns a list of values.

PlotStreamMixin.extractData()

static PlotStreamMixin.fillValueLists(elementValues, nullFillValue=0)

pads a list of lists so that each list has the same length. Pads with the first element of the list or nullFillValue if the list has no elements. Modifies in place so returns None

Used by extractChordDataMultiAxis

>>> l0 = [2, 3, 4]
>>> l1 = [10, 20, 30, 40, 50]
>>> l2 = []
>>> listOfLists = [l0, l1, l2]
>>> graph.plot.PlotStream.fillValueLists(listOfLists)
>>> listOfLists
[[2,   3,  4,  2,  2],
 [10, 20, 30, 40, 50],
 [0,   0,  0,  0,  0]]

PlotStreamMixin.postProcessData()

Call any post data processing routines here and on any axes.

PlotStreamMixin.postProcessElement(el: Music21Object, formatDict: dict[Any, Any], *values: list[numbers.Real]) → None

Any processing that needs to take place for each element, independent of what the axis is finding can go here. For chords, a single formatDict applies to all pitches/notes in the chord.

PlotStreamMixin.processOneElement(el: Music21Object)

Get a list of data from a single element (generally a Note or chord):

>>> n = note.Note('C#4')
>>> n.offset = 10.25
>>> s = stream.Stream([n])
>>> pl = graph.plot.ScatterPitchClassOffset(s)
>>> pl.processOneElement(n)
[(10.25, 1, {})]

>>> c = chord.Chord(['D4', 'E5'])
>>> s.insert(5.0, c)
>>> pl.processOneElement(c)
[(5.0, 2, {}), (5.0, 4, {})]

PlotStreamMixin.run(*, callProcess: bool = True, **keywords)

main routine to extract data, set axis labels, run process() on the underlying Graph object, and if self.doneAction is not None, either write or show the graph.

PlotStreamMixin.setAxisKeywords()

Configure axis parameters based on keywords given when creating the Plot.

Looks in self.savedKeywords, in case any post creation manipulation needs to happen.

Finds keywords that begin with x, y, z and sets the remainder of the keyword (lowercasing the first letter) as an attribute. Does not set any new attributes, only existing ones.

>>> b = corpus.parse('bwv66.6')
>>> hist = graph.plot.HistogramPitchSpace(b, xHideUnused=False)
>>> hist.axisX.hideUnused
True
>>> hist.setAxisKeywords()
>>> hist.axisX.hideUnused
False

Methods inherited from ProtoM21Object:

isClassOrSubclass()

Scatter

class music21.graph.plot.Scatter(streamObj=None, **keywords)

Base class for 2D scatter plots.

Scatter bases

• GraphScatter

• Graph

• PlotStreamMixin

• ProtoM21Object

Scatter read-only properties

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

Scatter read/write properties

Read/write properties inherited from Graph:

doneAction

Scatter methods

Methods inherited from GraphScatter:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() extractData()

fillValueLists() postProcessData() postProcessElement()

processOneElement() run() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

ScatterWeighted

class music21.graph.plot.ScatterWeighted(streamObj=None, **keywords)

Base class for histograms that plot one axis against its count.

The count is stored as the Z axis, though it is represented as size.

ScatterWeighted bases

• GraphScatterWeighted

• Graph

• PlotStreamMixin

• ProtoM21Object

ScatterWeighted read-only properties

Read-only properties inherited from GraphScatterWeighted:

rangeDiameter

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

ScatterWeighted read/write properties

Read/write properties inherited from Graph:

doneAction

ScatterWeighted methods

Methods inherited from GraphScatterWeighted:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction() hideAxisSpines()

nextColor() process() setAxisLabel() setAxisRange()

setIntegerTicksFromData() setTicks() show() write()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() extractData()

fillValueLists() postProcessData() postProcessElement()

processOneElement() run() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

ScatterWeighted instance variables

Instance variables inherited from GraphScatterWeighted:

maxDiameter

minDiameter

WindowedAnalysis

class music21.graph.plot.WindowedAnalysis(streamObj=None, **keywords)

Base Plot for windowed analysis routines such as Key Analysis or Ambitus.

WindowedAnalysis bases

• GraphColorGrid

• Graph

• PlotStreamMixin

• ProtoM21Object

WindowedAnalysis read-only properties

WindowedAnalysis.processor

Read-only properties inherited from PlotStreamMixin:

allAxes

id

Read-only properties inherited from ProtoM21Object:

classSet

classes

WindowedAnalysis read/write properties

Read/write properties inherited from Graph:

doneAction

WindowedAnalysis methods

WindowedAnalysis.extractData()

Extract data actually calls the processing routine.

Returns two element tuple of the data (colorMatrix) and the yTicks list

WindowedAnalysis.run(*, callProcess: bool = True, **keywords)

Actually creates the graph.

WindowedAnalysis.write(fp=None)

Overrides the normal write method here to add a legend.

Methods inherited from GraphColorGrid:

renderSubplot()

Methods inherited from Graph:

applyFormatting() applyFormattingToOneAxis() applyGrid() callDoneAction()

hideAxisSpines() nextColor() process() setAxisLabel()

setAxisRange() setIntegerTicksFromData() setTicks() show()

Methods inherited from PlotStreamMixin:

extractChordDataMultiAxis() extractChordDataOneAxis() fillValueLists()

postProcessData() postProcessElement()

processOneElement() setAxisKeywords()

Methods inherited from ProtoM21Object:

isClassOrSubclass()

WindowedAnalysis instance variables

Instance variables inherited from GraphColorGrid:

hideLeftBottomSpines
